Low Flow Self-Cleaning Water Filters (MTF Series)
MTF Series self-cleaning water filters
MTF Series self-cleaning water filters
Compact Self-Cleaning Filters for Low Flow and Small System Applications
Compact self-cleaning water filters designed for low flow applications and smaller system installations. The MTF Series delivers automatic filtration for industrial, irrigation, and water reuse systems where space, efficiency, and continuous operation are critical. Designed for low flow self-cleaning water filtration systems where reliable performance is required in compact installations.
Low flow self-cleaning water filters are automatic filtration systems designed for smaller systems where flow rates are limited but continuous filtration is required. Unlike larger industrial systems, compact filters like the MTF Series provide efficient debris removal and automatic cleaning in installations where space and system size are constrained.
These systems are commonly used in irrigation, small industrial loops, and water reuse applications where maintaining filtration without manual cleaning is essential.

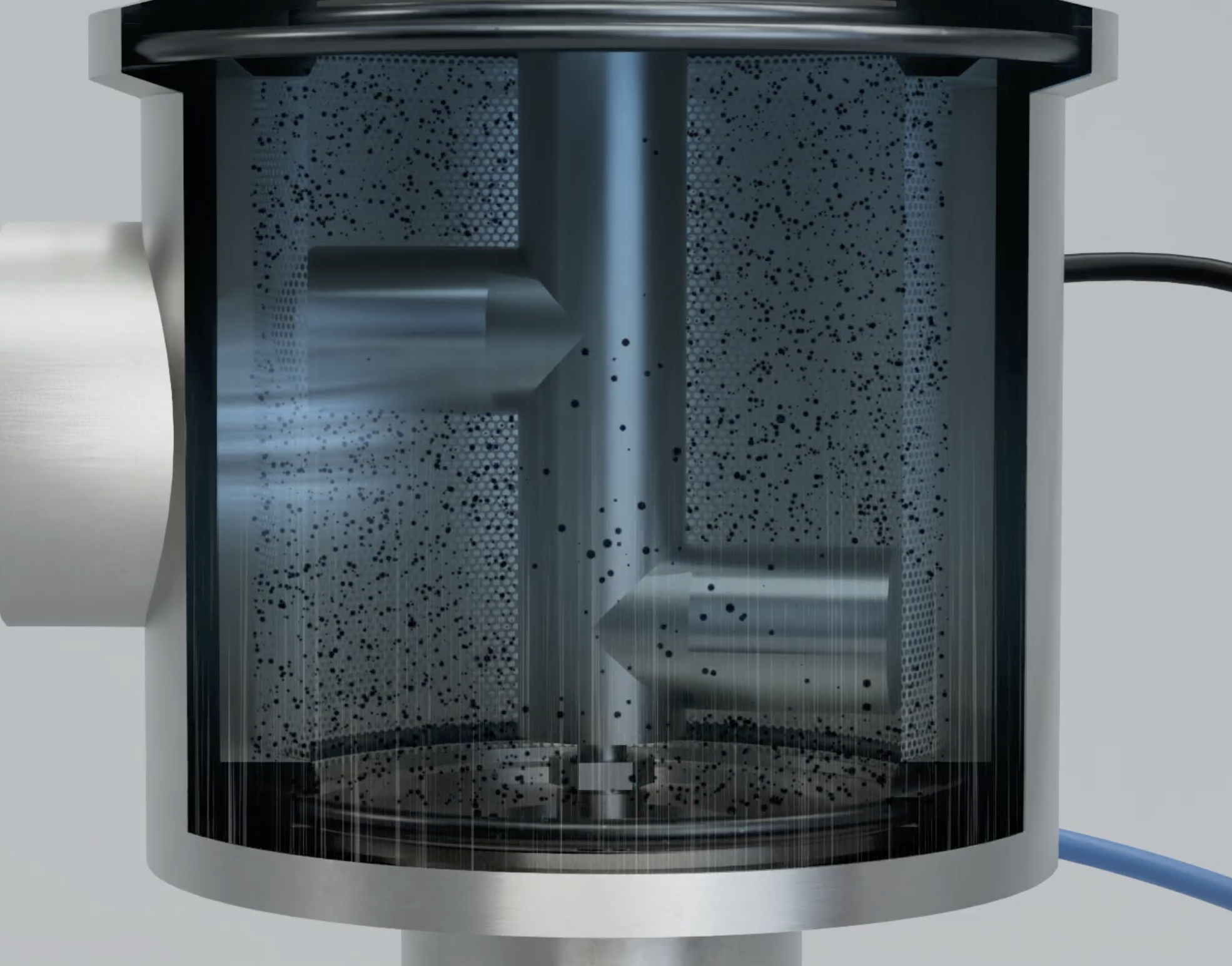

How MTF Automatic Filtration Systems Work
The MTF Series operates as an automatic self-cleaning water filtration system that removes debris from the screen without interrupting flow.
- Continuous filtration during cleaning cycles
- Low rinse water consumption
- Minimal maintenance requirements
- Reliable performance in compact water filtration system
For higher flow systems, compare with ABW Series filters,
or for low pressure systems see LPF Series filters.
MTF Series filters are designed for applications where compact filtration and low flow performance are required.
Irrigation Systems
Small Industrial Systems
Cooling Towers & HVAC (Smaller Systems)
Water Reuse Systems
Well Water Systems
The MTF Series compact water filtration system is designed low-flow filtration applications where space is limited and efficient automatic filtration is still required.
Choosing the correct system ensures optimal performance and long-term reliability.
The MTF Series includes a range of self-cleaning water filter models designed for compact systems and low flow requirements.
| Filter Model | Flange Size (in) | Screen Area (sq ft) | Max Flow (gpm) | Empty Weight (lbs) | Cut Sheet | Installation Layout |
|---|---|---|---|---|---|---|
| MTF 1 | 1 | 0.6 | 100 | 25 | PDF | STEP | |
| MTF 1.5 | 1.5 | 0.6 | 100 | 25 | PDF | STEP | |
| MTF 2 | 2 | 0.6 | 100 | 25 | PDF | STEP | |
| MTF 2-L | 2 | 1.5 | 200 | 70 | PDF | STEP | |
| MTF2-XL | 2 | 3 | 350 | 100 | PDF | STEP | |
| MTF 3 | 3 | 1.5 | 350 | 90 | PDF | STEP | |
| MTF 3-L | 3 | 3 | 350 | 110 | PDF | STEP | |
| MTF 3-XL | 3 | 5 | 500 | 175 | PDF | STEP | |
| MTF 4 | 4 | 1.5 | 350 | 100 | PDF | STEP | |
| MTF 4-L | 4 | 3 | 500 | 120 | PDF | STEP | |
| MTF 4-XL | 4 | 5 | 600 | 175 | PDF | STEP | |
| MTF 6 | 6 | 3 | 600 | 120 | PDF | STEP | |
| MTF 6-L | 6 | 5 | 1000 | 175 | PDF | STEP | |
| MTF 6-S | 6 | 7 | 1500 | 250 | PDF | STEP | |
| MTF 8 | 8 | 5 | 1300 | 175 | PDF | STEP | |
| MTF 8-S | 8 | 7 | 1500 | 250 | PDF | STEP | |
| MTF 10 | 10 | 7 | 1700 | 300 | PDF | STEP | |
| MTF 10-L | 10 | 11 | 2400 | 500 | ||
| MTF 12 | 12 | 11 | 2400 | 500 | ||
| MTF 12-L | 12 | 12.5 | 4000 | 600 | ||
| MTF 14 | 14 | 12.5 | 4000 | 600 | ||
| MTF 14-L | 14 | 16 | 6000 | 1000 | ||
| MTF 16-L | 16 | 16 | 6000 | 1000 | ||
| MTF 16-S | 16 | 24 | 10000 | 2000 | ||
| MTF 20-S | 20 | 24 | 10000 | 2000 | ||
| MTF 20-SL | 20 | 31 | 20000 | 4500 | ||
| MTF 24-S | 24 | 24 | 10000 | 2000 | ||
| MTF 24-SL | 24 | 31 | 20000 | 4500 |
Selecting the correct filter depends on:
- System flow rate
- Available installation space
- Filtration level required
- Application type (irrigation, industrial, reuse systems)
For system-level solutions, explore:
Tekleen MTF Series filters are engineered for reliable performance in compact and low flow applications.
Proven Performance Across Applications
Minimal Maintenance and Continuous Operation
Scalable and Flexible Design
Real-World Performance
Access manuals, installation layouts, and engineering documentation for MTF Series filters. Available resources include: MTF Series manuals Installation layouts Engineering drawings and configurations
Get expert guidance on selecting the right low flow self-cleaning water filter for your application.
Our team will help you:
- Determine the correct filter size
- Match system flow and installation constraints
- Recommend the best configuration
