Screens

Tekleen offers a wide assortment of screen types to meet all your filtration needs.

SST Mesh on Perforated Basket

High Performance Screen

Woven mesh from SST, titanium, hastaloy, etc., 2µ-3,000µ are diffusion bonded (sintered) on support mesh (drainage member) and on a perforated SST basket. The support mesh increases the screen open area by about 40%. The hole size will not change over time. Very high open screen area ratio, very good pressure rating, good bursting pressure rating and chemical resistance. Very high temperature ratings to 250°F.

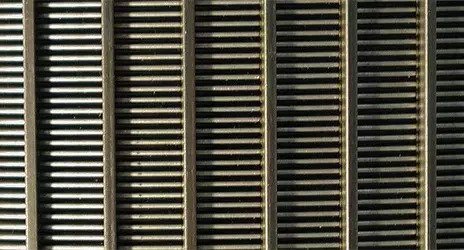

Vee Wire, Wedge Wire

Vee shape wires from SST, titanium, etc. 25µ-3,000µ that are spirally wound & welded on support rods. Rigid & very strong construction that will not flex or give to backwash force. Only two point particle contact. Very high consistency. Ideal for fibrous material. The slots will not shift or change over time. Good working pressure and bursting pressure. High temperature ratings to 300°F.
