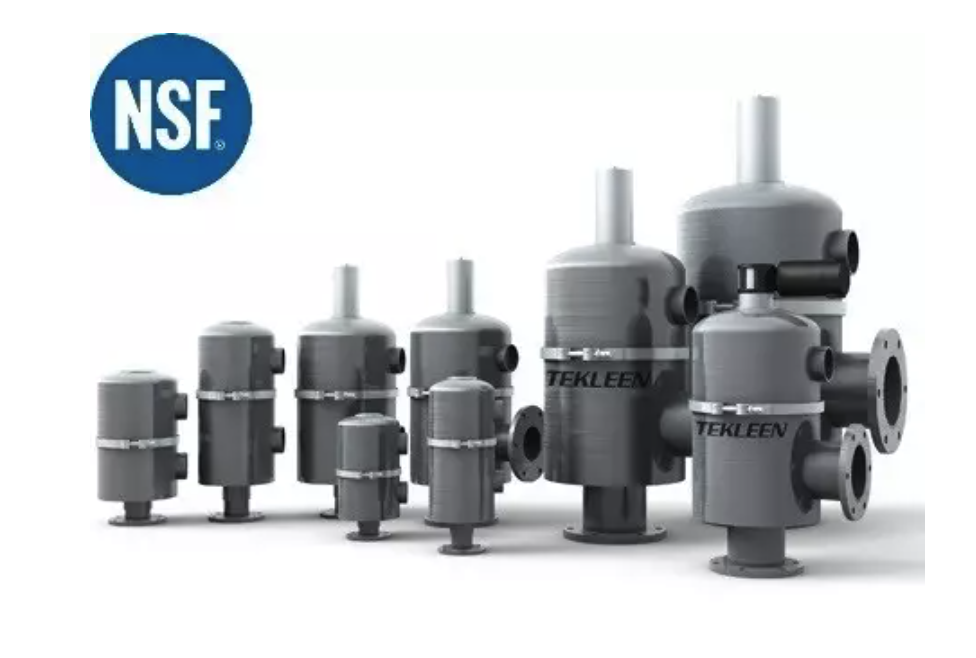

MTF Documentation
Learn about the various models, specifications, and parts of our MTF Filter Series.
Standard Features
Line Sizes: 1" - 24"
Flow Rate: 10 - 20,000 GPM
Screen Opening: 10µ - 4,000µ
Material: SST or Carbon Steel
Pressure: 40 - 150 PSI
Temperature to: 160°F (210°F Optional)
Flush Valve Size: 1", 1.5", & 2"
Filter Models
| Filter Model | Flange Size (in) | Screen Area (sq ft) | Max Flow (gpm) | Empty Weight (lbs) | Cut Sheet | Installation Layout |
|---|---|---|---|---|---|---|
| MTF 1 | 1 | 0.6 | 100 | 25 | PDF | STEP | |
| MTF 1.5 | 1.5 | 0.6 | 100 | 25 | PDF | STEP | |
| MTF 2 | 2 | 0.6 | 100 | 25 | PDF | STEP | |
| MTF 2-L | 2 | 1.5 | 200 | 70 | PDF | STEP | |
| MTF2-XL | 2 | 3 | 350 | 100 | PDF | STEP | |
| MTF 3 | 3 | 1.5 | 350 | 90 | PDF | STEP | |
| MTF 3-L | 3 | 3 | 350 | 110 | PDF | STEP | |
| MTF 3-XL | 3 | 5 | 500 | 175 | PDF | STEP | |
| MTF 4 | 4 | 1.5 | 350 | 100 | PDF | STEP | |
| MTF 4-L | 4 | 3 | 500 | 120 | PDF | STEP | |
| MTF 4-XL | 4 | 5 | 600 | 175 | PDF | STEP | |
| MTF 6 | 6 | 3 | 600 | 120 | PDF | STEP | |
| MTF 6-L | 6 | 5 | 1000 | 175 | PDF | STEP | |
| MTF 6-S | 6 | 7 | 1500 | 250 | PDF | STEP | |
| MTF 8 | 8 | 5 | 1300 | 175 | PDF | STEP | |
| MTF 8-S | 8 | 7 | 1500 | 250 | PDF | STEP | |
| MTF 10 | 10 | 7 | 1700 | 300 | PDF | STEP | |
| MTF 10-L | 10 | 11 | 2400 | 500 | ||
| MTF 12 | 12 | 11 | 2400 | 500 | ||
| MTF 12-L | 12 | 12.5 | 4000 | 600 | ||
| MTF 14 | 14 | 12.5 | 4000 | 600 | ||
| MTF 14-L | 14 | 16 | 6000 | 1000 | ||
| MTF 16-L | 16 | 16 | 6000 | 1000 | ||
| MTF 16-S | 16 | 24 | 10000 | 2000 | ||
| MTF 20-S | 20 | 24 | 10000 | 2000 | ||
| MTF 20-SL | 20 | 31 | 20000 | 4500 | ||
| MTF 24-S | 24 | 24 | 10000 | 2000 | ||
| MTF 24-SL | 24 | 31 | 20000 | 4500 |
Documentation
| File Download | Document Title | Document Type |
|---|---|---|
| MTF Series Manual | Manual | |
| Generic MTF Material of Construction (MTF1, 1.5, 2, 2-L, 3, & 4) | Material of Construction | |
| Generic MTF Material of Construction (MTF2-XL, 3-L, 3-XL, 4-L, 4-XL, 6, 6-L, & 8) | Material of Construction | |
| Generic MTF Material of Construction (MTF6-S, 8-S, 10, & Above) | Material of Construction | |
| Generic MTF Material of Construction, No Piston | Material of Construction | |
| Small Piston Assembly | Assembly | |
| Small Piston Assembly - Overall Dimensions | Assembly | |
| Large 1.5" Piston Assembly - Overall Dimensions | Assembly | |
| Controller Mounting for MTFXX with GB5B | Installation Layout | |
| MTF Filter w/ GB6 and Electric Flush Valve | Installation Layout | |
| MTF Filter w/ Alarm Bypass Valve | Installation Layout | |
| MTF Filter w/ Pressure Sustaining Valve | Installation Layout | |
| MTF Filter w/ Electric Flush Valve & Pressure Tank | Installation Layout | |
| MTF Filter w/ Electric Flush Valve, City Water Supply - Pressure Sustaining Valve | Installation Layout | |
| MTF w/ GB5-B Controller | Installation Layout | |
| MTF w/ GB6 Controller and Hydraulic Flush Valve | Installation Layout | |
| MTF w/ GB6-B Controller and Hydraulic Flush Valve | Installation Layout | |
| MTF Filter w/ Electric Flush Valve & GB6/UL Controller | Installation Layout | |
| MTF Filter - Electric Flush Valve, GB6 Controller Pressure Sustaining Valve | Installation Layout | |
| MTF Filter w/ Hydraulic Flush Valve, GB6/UL Controller, & Pressure Sustaining Valve | Installation Layout | |
| MTF Filter - Electric Flush Valve, GB6 Controller, & Solenoid Vent for Piston | Installation Layout | |
| MTF Filter - Electric Flush Valve, GB6 Controller, Solenoid Vent for Piston, & Press. Sust. Valve | Installation Layout | |
| MTF Filter w/ Hydraulic Rinse Controller & Hydraulic Flush & Pressure Sustaining Valve | Installation Layout | |
| MTF Filter w/ Electric Flush Valve, GB6 Controller, & No Piston | Installation Layout | |
| MTF Filter w/ Electric Flush Valve, GB6 Controller, & Dewatering System | Installation Layout | |
| MTF Filter w/ Electric Flush Valve, GB6 Controller, Electric Bypass & Pressure Sustaining Valve | Installation Layout | |
| 2x MTF in Parallel w/ GB7 Controller & Electric Flush Valves | Installation Layout | |
| 2x MTF in Parallel w/ GB7, Electric Flush Valves, & Electric Stand By Bypass Valve | Installation Layout | |
| 2x MTF in Parallel w/ GB7, Electric Flush Valves, & Pressure Sustaining Valve | Installation Layout | |
| 2x MTF in Parallel with Electric Butterfly By-Pass Valve | Installation Layout | |
| 2x MTF2 in Parallel with Alarm By-Pass | Installation Layout | |
| 2x MTF in Parallel w/ 1" Hydraulic Flush Valves, Solenoids, & GB7 Controller | Installation Layout | |
| 2x MTF in Parallel w/ 2" Hydraulic Flush Valves, Solenoids, & GB7 Controller | Installation Layout | |
| 2x MTF in Parallel w/ GB7 Controller, Electric Flush Valves, & Solenoid Vents for Pistons | Installation Layout | |
| 2x MTF in Parallel w/ GB7 Controller, Electric Ball Flush Valves, Bypass Valve, & Press. Sust. Valve | Installation Layout | |
| 2x MTF in Series w/ Electric Flush Valves & 2 GB6 Controllers | Installation Layout | |
| CSF & MTF Filters in Series w/ Electric Flush Valves & 2 GB6 Controllers | Installation Layout | |
| MTF Skid Unit w/ Cooling Tower Sweeper - 10'x10' (Sweeper 100) | Installation Layout | |
| MTF Skid Unit w/ Cooling Tower Sweeper - 10'x20' (Sweeper 200) | Installation Layout |
Spare Parts
4. Fine Screen
5. Dirt Collector
6. Dirt Collector Nozzle
7. Hydraulic Motor
8. Flush Valve
10. Cover Seal
11. Screen Bar Bearing (2-XL Models and Up)
12. Disc Bearing (2-XL Models and Up)
15. Dirt Collector Rod
16. Upper/Lower O-Ring
22. Hydraulic Piston
23. Screen Disc (2-XL Models and Up)
99. MTF Clamp
